Nylon Abrasive Brush

Nylon Abrasive Brush (NAB-Serie)

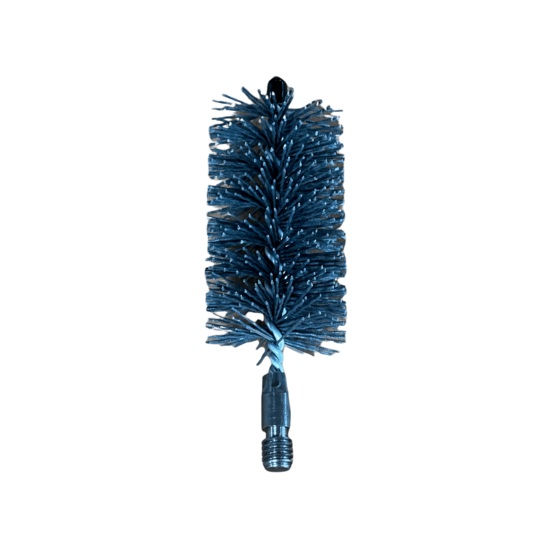

For internal tube cleaning from 25 millimeters and up, NAB brushes are a perfect choice. NAB brushes have nylon bristles with a silicon carbide coating, so they not only provide a cleaning, but also a polishing effect. This leads to very effective cleaning with excellent results. The abrasive brushes are always used in oversize, this can be between 5 and 10 millimeters. This means that for cleaning a tube with an internal diameter of 40 millimeters, a brush of 45/50 millimeters is required.

This product is manufactured by Goodway Benelux BV and is not part of the Goodway Technologies (USA) product range.

Applications within the industry

NAB brushes are increasingly being used for all kinds of industrial applications, below are a number of examples:

• Shell & Tube heat exchangers
• Firetubes of firetube boilers
• Tubular evaporators in the (food/dairy) industry
• Flue gas coolers
• Reactor tubes of reformer/catalyst systems

Oversized cleaning

NAB brushes are used oversized, this provides 2 major advantages:

• More oversize ensures longer and more intense contact with the tube wall, creating more friction. Due to this higher friction, the cleaning effect will be increasingly better.
• More oversize ensures that these brushes are less susceptible to wear and tear, so that they ultimately have a much longer lifetime. (a brush with a 10 millimeter oversize can, for example, lose 2 millimeters - however it still has 8 millimeters left)

The oversized cleaning effect also means that there is less need to precisely get the exact internal tube diameter. If it is a millimeter larger or smaller, it has virtually no effect on the brush, because it is already 5/10 millimeters larger itself. Especially for larger jobs such as heat exchangers or reactors with several thousand tubes, this can make a huge difference in calculation and cleaning.

Replacement of stainless steel brushes

NAB brushes have several factors that make the brushes very interesting and effective. Some examples are; lifespan, flexibility, cleaning effect and more.

Due to all these factors, the NAB brushes are increasingly being used as a replacement for ''traditional'' stainless steel brushes. This is because stainless steel brushes often have to be tailor-made very precisely, resulting in a very high margin of error. Especially if the diameter turns out to be different at the start of the job.
