The RAM-PRO is a compact and lightweight device developed to clean the tubes of heat exchangers, such as water-cooled chillers. This complete package contains all the necessary products to professionally clean tubes.
Customer reviews:
Recently we have purchased a RAM-PRO system to increase the efficiency of our chillers after a periodic tube cleaning. The projects have gone very well this winter/spring, we are very satisfied with our new machine.
For some of our cruise ships, we use the RAM-PRO tube cleaner of Goodway Benelux, to clean our seawater tube heat exchangers (air-conditioning condensers). The machine works excellent and is easy to operate by our engineers.
The RAM-PRO is an ideal system for the tube cleaning of our tube heat exchangers on board. It’s easy to use, simple and effective to remove seawater deposits inside the tubes. We’re currently looking into purchasing a chemical pump for chemical cleaning of plate and tube heat exchangers. I would also like to say that we are very happy with the aftersales service and remote support from Goodway Benelux.
Goodway products are of an extremely high quality. The service and support exceeds expectations every single time. Pleasure to work with and would recommend highly!
For the tube cleaning of sea water condensers on board of our vessels we are using several RAM-PRO and RAM-4 systems. The tube cleaners do the job seamlessly in combination with the rotating brushes.
• Perfect internal cleaning solution for shell and tube heat exchangers
• Easy usage and handling for our technicians
• Easy exchange of the cleaning brushes
• Only weakness we had, was the footswitch (we were forced to repair it after the first usage, unfortunately.)
Complete tube cleaning package
The RAM-PRO tube cleaning package has been put together to offer a complete package for the professional cleaning of heat exchanger tubes. The package is equipped with the RAM-PRO tube cleaning system, flexible shafts, brushes, and a maintenance kit for the shafts. The package can be used by both end customers with their own installation and contractors active in the service and cleaning sector.
Applications and usage
The RAM-PRO tube cleaning system is designed to remove light to medium type deposits from heat exchanger tubes. Think of: algae, sludge, mud and biological fouling (biofilm). The complete package is interesting for tube diameters between 11-28 millimeters and with a maximum tube length of 6 to 6,5 metres. The RAM-PRO is especially interesting for the following systems/installations:
Think of systems from well-known suppliers and manufacturers, such as: Trane, York, Carrier, McQuay etc.
Features RAM-PRO
The RAM-PRO system has been developed to clean heat exchanger tubes as effectively and efficiently as possible. The system is therefore equipped with various useful features, such as:
- Compact and lightweight (15,8 KG) - easy to carry around and transport, weighs less than half of other tube cleaners. Ideal for tight work spaces.
- Sturdy roll cage - protects equipment on job sites and during transport.

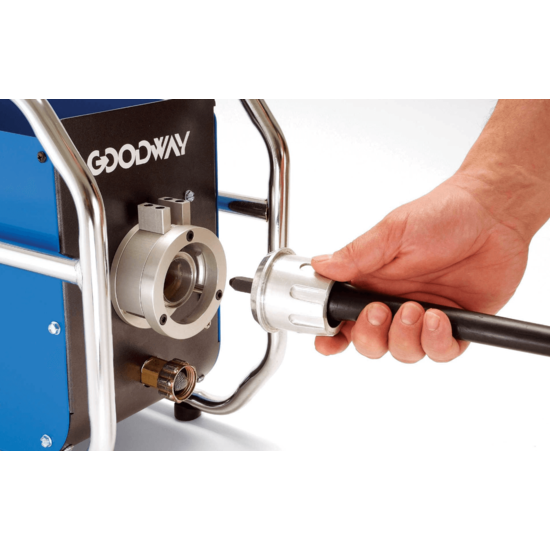

- Fitted as standard with a (patented) quick coupling manifold. This allows the operator to connect the flexible shaft to the tube cleaning system within seconds.
- Fitted as standard with an improved chain drive system, which increases system reliability and enables continuous peak performance on site - no more slipping belts or equipment downtime.
- Designed for rugged environments - motor assembly is connected with vibration isolators to help tolerate bumps and jolts.
- Flexible shafts and brushes can rotate in either direction thanks to the bi-directional foot switch.
Specifications / Scope of delivery
This package contains the following products & accessories (I.D. stands for internal diameter):
Package for diameters 7-10 millimeter:
- 1x RAM-PRO Tube Cleaning System
- 1x GTC-701-25 (Flexible shaft with threaded coupling, 6,4 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 7-10 MM
- 10x GTC-211-1/4 (Nylon Brush with threaded coupling) - FOR TUBE I.D. 7 MM
- 10x GTC-211-5/16 (Nylon Brush with threaded coupling) - FOR TUBE I.D. 8-9 MM
- 10x GTC-211-3/8 (Nylon Brush with threaded coupling) - FOR TUBE I.D. 9-10 MM
- 1x GSL-705 (Maintenance lubrication unit for flexible shafts)
- 2x GSL-LU1 (Special oil for flexible shafts, in conjunction with GSL-705 lubrication unit)
Package for diameters 11-13 millimeter:
- 1x RAM-PRO Tube Cleaning System
- 1x GTC-702Q-25 (Flexible shaft with Quick Connect coupling, 9,5 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 11-13 MM
- 10x GTC-211Q-7/16 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 11-12 MM
- 10x GTC-211Q-1/2 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 13-14 MM
- 1x GSL-705 (Maintenance lubrication unit for flexible shafts)
- 2x GSL-LU1 (Special oil for flexible shafts, in conjunction with GSL-705 lubrication unit)
Package for diameters 14-16 millimeter:
- 1x RAM-PRO Tube Cleaning System
- 1x GTC-703Q-25 (Flexible shaft with Quick Connect coupling, 13,0 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 14-16 MM
- 10x GTC-211Q-1/2 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 13-14 MM
- 10x GTC-211Q-9/16 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 15 MM
- 10x GTC-211Q-5/8 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 16-17 MM
- 10x SGB-Q-075 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 13-16 MM
- 1x GSL-705 (Maintenance lubrication unit for flexible shafts)
- 2x GSL-LU1 (Special oil for flexible shafts, in conjunction with GSL-705 lubrication unit)
Package for diameters 17-28 millimeter:
- 1x RAM-PRO Tube Cleaning System
- 1x GTC-704Q-25 (Flexible shaft with Quick Connect coupling, 14,3 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 17-28 MM
- 10x SGB-Q-100 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 17-22 MM
- 10x SGB-Q-125 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 23-28 MM
- 1x GSL-705 (Maintenance lubrication unit for flexible shafts)
- 2x GSL-LU1 (Special oil for flexible shafts, in conjunction with GSL-705 lubrication unit)
Package for all diameters (7-28 millimeter):
- 1x RAM-PRO Tube Cleaning System
- 1x GTC-701-25 (Flexible shaft with threaded coupling, 6,4 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 7-10 MM
- 1x GTC-702Q-25 (Flexible shaft with Quick Connect coupling, 9,5 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 11-13 MM
- 1x GTC-703Q-25 (Flexible shaft with Quick Connect coupling, 13,0 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 14-16 MM
- 1x GTC-704Q-25 (Flexible shaft with Quick Connect coupling, 14,3 mm O.D. & 7,6 meter length) - FOR TUBE I.D. 17-28 MM
- 10x GTC-211-1/4 (Nylon Brush with threaded coupling) - FOR TUBE I.D. 7 MM
- 10x GTC-211-5/16 (Nylon Brush with threaded coupling) - FOR TUBE I.D. 8-9 MM
- 10x GTC-211-3/8 (Nylon Brush with threaded coupling) - FOR TUBE I.D. 9-10 MM
- 10x GTC-211Q-7/16 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 11-12 MM
- 10x GTC-211Q-1/2 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 13-14 MM
- 10x GTC-211Q-9/16 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 15 MM
- 10x GTC-211Q-5/8 (Nylon Brush with Quick Connect coupling) - FOR TUBE I.D. 16-17 MM
- 10x SGB-Q-075 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 13-16 MM
- 10x SGB-Q-100 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 17-22 MM
- 10x SGB-Q-125 (Nylon Abrasive Brush with Quick Connect coupling) - FOR TUBE I.D. 23-28 MM
- 1x GSL-705 (Maintenance lubrication unit for flexible shafts)
- 2x GSL-LU1 (Special oil for flexible shafts, in conjunction with GSL-705 lubrication unit)
