De AWT-100X is het krachtigste toestel van Goodway ontwikkeld om warmtewisselaarpijpen en leidingen te reinigen. Het systeem is lucht aangedreven en daardoor een favoriet in de industriële reiniging. Het toestel kan met of zonder water gebruikt worden.
Reviews van klanten:
We use the Goodway Benelux AWT-100X tube cleaning system and GTC-721G flexible shafts for a yearly cleaning of our shell and tube heat exchangers on-site. The combination of the strong shafts and powerful AWT-100X tube cleaner ensures that the tubes can be cleaned very effectively without water.
We use the AWT-100X and RAM-4X tube cleaners of Goodway Benelux to provide boiler tube cleaning services at our customers. The combination of flex hub scrapers and nylon abrasive brushes makes for good cleaning results, even if the deposits are harder.
We rented an AWT-100X tube cleaner from Goodway Benelux to clean the fire tubes in our boilers. These are normally cleaned with a different system, but the level of fouling was too high. The AWT-100X in combination with the flex hub scraper and nylon abrasive brushes is ideal for removing (hard) deposits. We received support and service from Goodway Benelux and were able to carry out the cleaning very well. It was the first time we worked with this device.
We have multiple large evaporators with a total of over 3.000 tubes on our production plant. Goodway Benelux combined the delivery of the evaporator tube cleaning equipment with a practical training given by their two experts to our operators. It was a good session in which we learned how to use the equipment and what it could do for us. We were immediately impressed by the effectiveness and simplicity of the equipment. Our evaporator tubes can now be cleaned on a regular basis with the correct equipment.
We use the AWT-100X for cleaning a shell-tube heat exchanger. Due to the adjustable brushes, both in diameter and stiffness, this is a very efficient device.
We have purchased an AWT-100X system and accessories from Goodway Benelux for the dry cleaning of various piping in our factory. With the heavy-duty flex hub tools and brushes it is possible to remove different types of fouling. The advantage is that the system does most of the work and we ourselves have less labor and downtime.
We purchased the AWT-100X from Goodway Benelux to clean falling film evaporator tubes at one of our factories. After some initial testing we were able to clean the evaporator tubes ourselves easily and effectively. The equipment is powerful and allows us to remove (harder) fouling and/or blockages inside the tubes whenever necessary. After half a year, we have decided to purchase another AWT-100X system. This one will be used to clean our firetube boilers.
We have now had the opportunity to use the AWT-100X machine we purchased from yourselves and I am glad to say it has done a great job in a difficult environment.
We urgently needed a complete package to clean the fire tubes of our boiler installation. We have chosen the AWT-100X device + accessories which were available the same day for pickup. The system is very powerful and easy to use. With the right accessories we have been able to get our tubes clean again. We are very satisfied with the device and accessories.
After cleaning our fire tubes with high-pressure water, a lot of deposits remained inside the tubes. That is why we have opted for a mechanical technique to remove the deposits by means of rotating brushes and tools. An employee of Goodway Benelux helped us during the delivery with an explanation and demonstration. An extra advantage is that we will use less fuel to produce the same heat. The more deposits inside the tubes, the more energy it takes to make steam. We are satisfied.
We use the AWT-100X tube cleaning system as an addition to our cleaning solutions because it is not always necessary to use large machines such as a high-pressure units of 1000 bar 750 hp 260 l/minute for tube cleaning jobs. The advantage of the AWT-100X is that we can use this machine with or without water, the device does what it is supposed to do and gives us a lot of new possibilities.
We tested the AWT-100X on our falling film evaporators and our employees were immediately impressed. The device is light, easy and safe to use. After a short introduction, we were able to get started with the device on our own. In addition, the support of Goodway Benelux was very polite and well prepared. After the short test phase, the device was immediately ordered.
Krachtigste pijpreiniging systeem

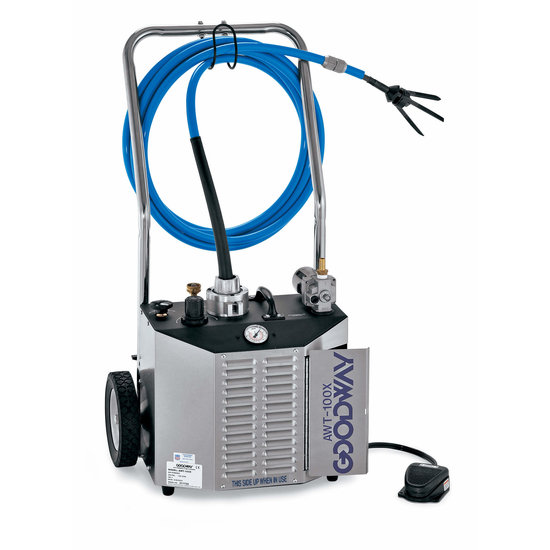

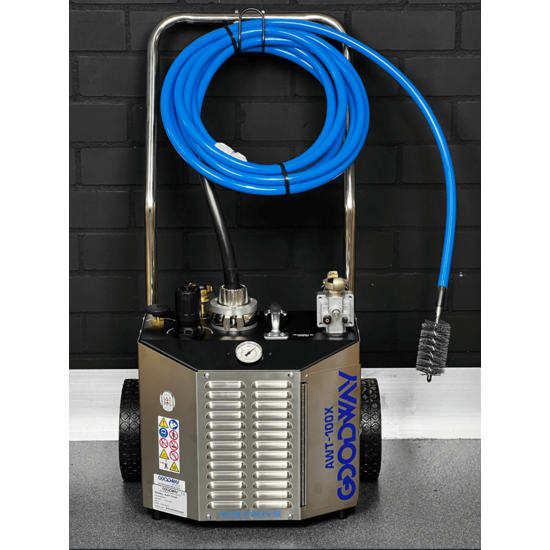

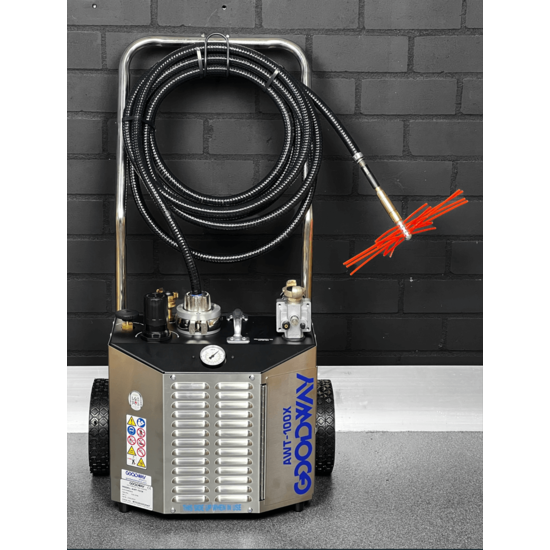

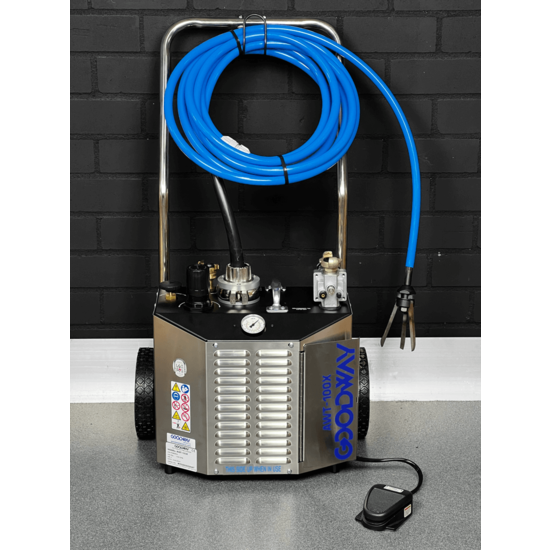

Het Goodway AWT-100X pijpreiniging systeem is het krachtigste toestel van Goodway, ontwikkeld om warmtewisselaarpijpen en leidingen effectief te reinigen. Het toestel is voorzien van een robuuste lucht aangedreven motor met een maximaal vermogen van 4 PK. De AWT-100X beschikt over een snelheid en torsie regelaar, waardoor de snelheid en kracht optimaal ingesteld kunnen worden op basis van de toepassing. Het systeem kan voor vrijwel elke pijpreiniging applicatie ingezet worden, met of zonder water. Dit systeem is de absolute favoriet voor (zware) pijpreinigingswerkzaamheden.
Toepassingen en gebruik

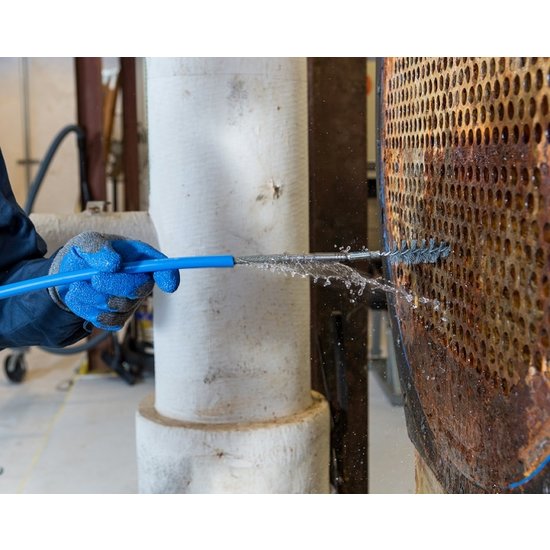

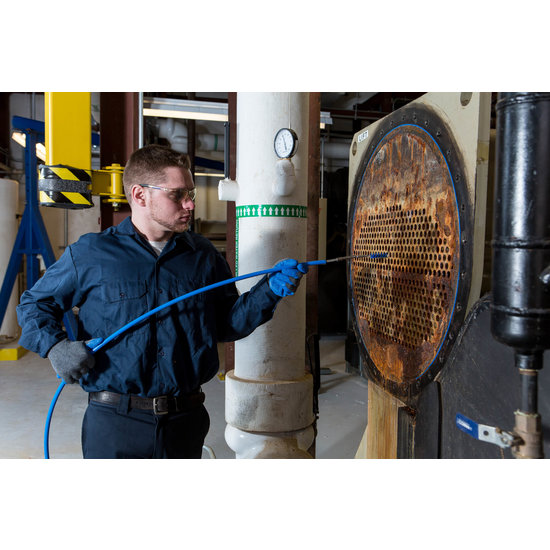

Het AWT-100X pijpreiniging systeem is ontworpen om lichte, medium, en harde type vervuiling te verwijderen uit warmtewisselaar pijpen en en verschillende type leidingen. Denk hierbij aan: slib, modder, as, roet en kalk. Het systeem kan voor verschillende pijpdiameters ingezet worden, meestal is dit vanaf ongeveer 14-15 millimeter en groter. De AWT-100X is vooral interessant voor de volgende systemen/installaties:
- Shell en tube warmtewisselaars
- Ketel vlampijpen
- Falling film indampers
- Watergekoelde chillers/condensors
- Rookgaskoelers
- Droge pijpreiniging van o.a. productie- en afzuigleidingen
Kenmerken AWT-100X
Het AWT-100X systeem is ontwikkeld om zo effectief en efficiënt mogelijk warmtewisselaarpijpen en leidingen te kunnen reinigen. Het systeem is daarom voorzien van diverse handige features, zoals:
- Voorzien van een karretje met 2 grote wielen, waardoor deze eenvoudig en snel getransporteerd kan worden op locatie.
- Mogelijkheid om de snelheid en torsie te veranderen om de ideale instelling te krijgen die past bij de reinigingstoepassing.
- Zeer krachtige motor met maximaal vermogen van 4 PK, heeft een variabele snelheid van 500-3000 omwentelingen/minuut, geschikt voor zware reinigingswerkzaamheden; zoals het openboren van verstopte pijpen.
- Lucht aangedreven motor is erg betrouwbaar en biedt extra veiligheid, zeker op industriële locaties en fabrieken.
- Systeem kan met of zonder water gebruikt worden, ook zeer effectief bij droge pijpreiniging van bijvoorbeeld ketel vlampijpen.
- Enkel rechtsom roteren met schroefdraad borstels en tools voor de sterkste verbinding.
Specificaties AWT-100X
- Motor vermogen: 4 PK (lucht aangedreven)
- Snelheid: 500-3000 omwentelingen/minuut (verstelbaar)
- Draairichting: enkel rechtsom
- Eenvoudig te transporteren door het karretje met 2 grote wielen
- Water invoer: minimaal 2 bar met 7,5 liter/minuut
- Lucht invoer: minimaal 5 BAR - 3,0 m3/min lucht, maximaal 7 BAR - 3,6 m3/min lucht
- Geluid tijdens gebruik: 90 - 100 dB
- Afmetingen: 43 x 51 x 94 centimeter (lengte x breedte x hoogte)
- Gewicht: 25 KG (54 lbs)
